Exterior Installation Systems

Schluter Paver Support System

Schluter
Product Description Image

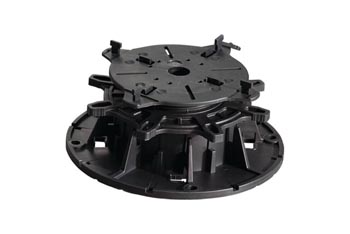

TROBA-LEVEL-PLV60/-PLA70 Schluter-TROBA-LEVEL-PLV 60 adjustable paver supports are designed to support tile pavers of different formats and thicknesses. The supports can be variably adjusted from 2-3/8″ to 5-1/8″ (60 – 130 mm) using the height adjustment ring and two opposing threads. To achieve greater heights, TROBA-LEVEL-PLA 70 height extensions can be added between the height adjustment ring and the base plate.

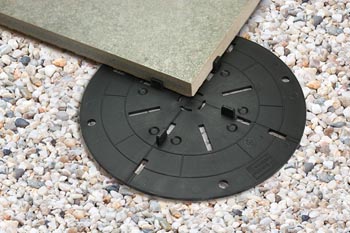

TROBA-LEVEL-LV3/-PL10 Schluter-TROBA-LEVEL-LV 3/-PL 10 stackable paver supports are designed to support tile pavers of different formats and thicknesses. TROBA-LEVEL-LV 3 stackable paver supports are designed for low assembly heights and can be used in combination with TROBA-LEVEL-PL 10 as base plates for additional load distribution.



Schluter Balcony Profiles

Schluter
Product Description Image
BARA-ESOT

Schluter®-BARA-ESOT is a skirting support profile made of stainless steel for use in applications where no load-bearing substrate is available to support the skirting tiles. These substrates include metal flashing or bituminous waterproofing layers that are used at floor/wall transitions on balconies and terraces.
BARA-RAK Schluter®-BARA-RAK is a color-coated aluminum balcony edging profile with a drip lip. It is designed to be fitted to the edges of finished sloped surfaces to form both an edging and a drip lip.
BARA-RW

Schluter®-BARA-RW is an L-shaped edging profile for finishing the exposed perimeters of balconies and terraces. The profile provides a neat edge appearance while concealing and protecting the exposed edges of the setting bed against weathering and corrosion.
BARA-RWL Schluter®-BARA-RWL is a color-coated aluminum edging profile with drainage holes for the perimeters of balconies and terraces where large-format pavers are installed over loose-laid gravel or elevated sub-structures.



Mapei Exterior Systems

Mapei
Product Image Description Size
PP Level Duo Maxi PP level DUO MAXI System is ideal for transforming unused patios and rooftops into desirable living spaces. The pedestal system raises/elevates the pavers and levels the floor by compensating for a sloped substrate up to 5%, thanks to the self-leveling head. This modular system allows for easy maintenance and access to conduits, waterproofing and drainage systems beneath the pavers. The resulting open joints between pavers allow for water to flow through the assembly, eliminating the risk of freeze/thaw damage. Pedestal heads are automatically self-leveling or can be easily converted into fixed heads with the use of the PP level DUO MAXI locker ring. Small 1-1/8″ to 1-9/16″

Medium 1-1/2″ to 2-1/4″

Large 2-3/16″ to 3-9/16″

XLarge 3-7/16″ to 5-7/8″

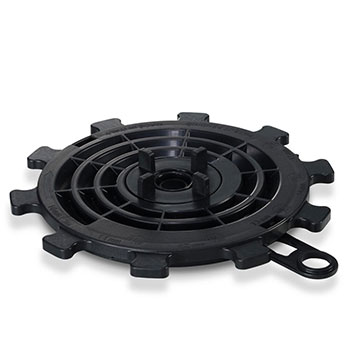

PP Level Mini PP level MINI System is ideal for transforming unused patios and rooftops into desirable living spaces. The product is laid dry, without adhesives or other fixings. The resulting open joints between pavers allow for water to flow through the assembly, eliminating the risk of freeze/thaw damage. 3/8″ to 9/16″

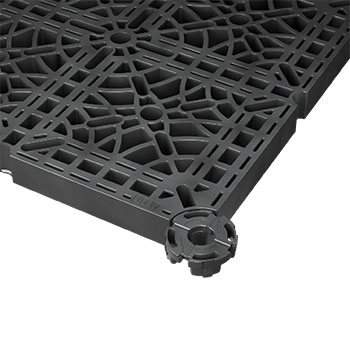

PP Level Grid

PP level GRID System is used in combination with pedestals to offer an extra degree of safety and protection. In the unlikely event of pavers breaking, the grid will prevent anything from falling through. The use of PP level GRID System allows the installation of ceramic pavers, natural-stone* and concrete pavers of different sizes. In addition, because the installation is free of the constraints of the pedestals underneath and because of movable head spacers, pavers can be placed on top of the grid in any pattern desired.

 19-1/2″ x 19-1/2″ x 1-9/16″



Redwood Plastics

Redwood Plastics & Rubber
Product Image Description SKU
1/8″ Rise-It Pedestal 1/8″ Rise-It Pedestal 1/8″ thick 3mm spacing to mimic standard grout line E-71852
1/2″ Rise-it Pedestal 1/2″ Rise-It Pedestal 1/2″ thick 3mm spacing to mimic standard grout line E-71850
1/2″ Flat Top Rise-it Pedestal 1/2″ Flat Top Rise-it Pedestal for 24×48 or larger, extra support & noise reduction E-71855
1/8″ Rise-it Shim Shim for leveling and drainage slope E-71053
1/16″ Rise-it Shim Shim for leveling and drainage slope E-71851
